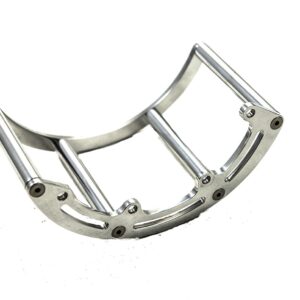

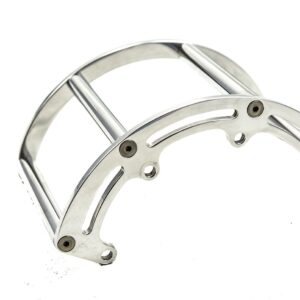

9.375″ TBS BELT GUARD (FITS 6.90″ TO 7.90″ SNOUT) [#8609]

9.375″ OAL TBS BELT GUARD (FITS 6.90″ TO 7.90″ SNOUT) [#8609]

With belt failure being a problem among supercharged motors, TBS has developed its own billet Belt Guard to counteract the possible damage.  Assembled with an assortment of stand lengths it can accommodate room for all of our snout lengths.

Our Polished Belt Guards are machined from 6061 billet aluminum and utilize stainless steel hardware. A TBS Belt Guard is designed to protect vital components in the event of a belt failure, this is a must have for street rods and show cars alike.

No additional mounting hardware is needed to secure these safety belt guards to your blown motor.

Features:

– Easily mounts to existing hardware

– Works with Roots style blowers

– Accommodates pulleys up to 7″ in diameter

– NHRA / IHRA Required

Belt Guard Chart:

#8605:     Fits snouts 3.90” and smaller

No stands.

5/16 – 18 x 2.5” [x4]

#8606:     Fits 3.90” – 4.90” snout.

7/8” stands [x4]

5/16 – 18 x 3.5” [x4]

#8607:     Fits 4.90” – 5.90” snout.

1 7/8” stands [x4]

5/16 – 18 x 4.5” [x4]

#8608:     Fits 5.90” – 6.90” snout.

2 7/8” stands [x4]

5/16 – 18 x 5.5” [x4]

GUARDS BELOW USE BELT GUARD STUDS

#8609:     Fits 6.90” – 7.90” snout.

3 7/8” stands [x4]

Belt guard studs [x4]

5/16 – 18 x 1” [x4]

#8610:     Fits 7.90” – 8.90” snout.

4 7/8” stands [x4]

Belt guard studs [x4]

5/16 – 18 x 1” [x4]

#8611:     Fits 8.90” – 9.90” snout.

5 7/8” stands [x4]

Belt guard studs [x4]

5/16 – 18 x 1” [x4]
