2″ XR BELT GUARD STANDS AND BOLTS (3 PK.) (BLACK ANODIZED) [#8632]

#8632 – 2″ XR Stands and Bolts (3 PK.) (BLACK ANODIZED)

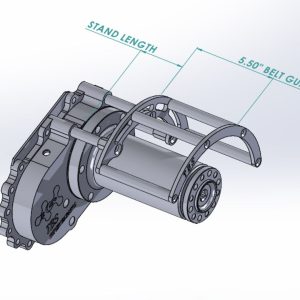

XR Series Belt Guards Stand Chart:

No Spacer: Fits 3.90” snout (or 5.45” overall) when mounted to front cover.

Includes: 3/8 – 16 x 3/4″ Flat Head [x3]

#8630 – .20” Spacer: Fits 5.15” snout (or 5.65” overall) when mounted to front cover.

Includes: .20 Spacer [x3]

3/8 – 16 x 1” Flat Head [x3]

#8631 – 1.20” Spacer: Fits 5.90” snout (or 6.65” overall) when mounted to front cover.

Includes: 1.20” Spacer [x3]

3/8 – 16 x 2” Flat Head [x3]

#8632 – 2” XR Stand: Fits 6.90” snout (or 7.45” overall) when mounted to front cover.

Includes: 2” XR Stand [x3]

3/8 – 16 x 1” Flat Head [x3]

3/8 – 16 x 1.5” stud [x3]

#8633 – 3” XR Stand: Fits 7.90” snout (or 8.45” overall) when mounted to front cover.

Includes: 3” XR Stand [x3]

3/8 – 16 x 1” Flat Head [x3]

3/8 – 16 x 1.5” stud [x3]

#8604 – Clamp for XR Belt Guard: Fits 5.90” – 8.40” Snouts.

Includes: Belt Guard Clamp [x1]

1/4 – 20 x 1” S.H.C.S. [x2] *Installed in clamp.

3/8 – 16 x 3/4″ Flat Head [x3]
