250 MERCURY MARINE 575 SCi REPLACEMENT SUPERCHARGER W/ SNOUT, IDLER AND TOP PULLEY [#2096]

$3,350.00

Call For Availability

SKU: 2096 Categories: , , ,
Share

Description

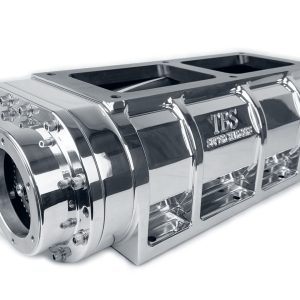

TBS 250 BilletCharger Mercruiser 575 SCi Replacement Supercharger

The Blower Shop is the ONLY manufacturer of a direct bolt on replacement 256 supercharger for the Mercury Marine 575 SCi engine package. We started with our award winning TBS 250 BilletCharger and made fine adjustments in the design to accommodate Mercury Marine's bolt pattern, snout spacing, and throttle body injection system. What we were left with is a blower that is not only a direct fit for the 575 SCi, but an upgrade to the entire package.

Features

250 Billet Case / 2 Lobe Rotors (Direct Bolt-On Replacement for the Mercruiser 575 SCi Package) Specs:

  • Billet Case
    • CNC machined 6061-T6 Aluminum
    • Increased Strength over cast
    • Hard Anodized Interior
    • Mirror-Like Polish
    • Low Profile Design (6.56” tall including Billet Carb Adaptor)
    • Single or Dual Carb (4150 or 4500 *Please Specify when Ordering)
  • 2 Lobe Rotors
    • Billet Extrusion
    • Teflon OD Stripping
    • Full length rotor shaft for increased strength
    • Maximum boost at low RPM
  • Billet Front Cover
    • Oil Level Sight Glass
    • Oil Drain Plug
    • Polished Pressure Relief Valve
  • Billet Bearing Plates
    • Increased Strength over cast
    • Hard Anodized
Included:
  • 250 Billet Supercharger with Snout (Bolt Pattern Machined to Match Factory Mercruiser Manifold)
  • Supercharger Top Pulley (10 Rib) (*Please specify engine size and desired boost when ordering)
  • Idler Assembly (Spring Tensioner, Pulley)
  • Blower to Manifold O-Ring
  • Studs

Application

Application:

  • Direct Bolt-On Supercharger Replacement for the Mercury Racing 575 SCi Package
  • Excellent for desired boost pressure up to 10 PSI

Additional information

Weight 50 lbs
